Product details
Description

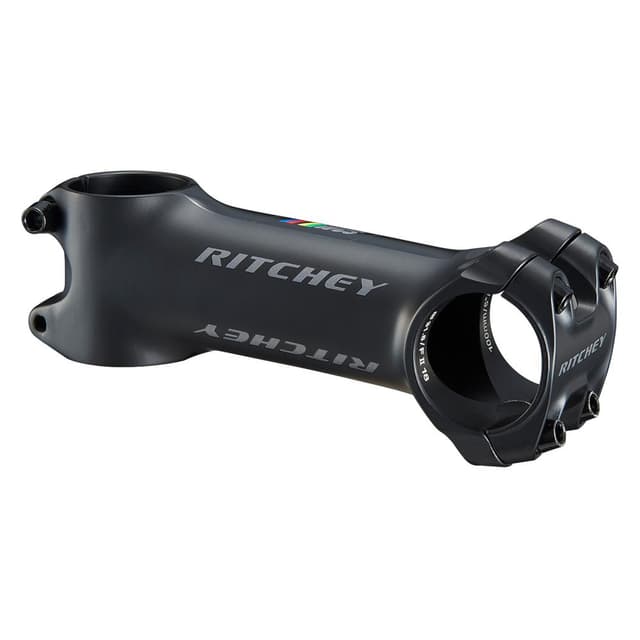

The Ritchey WCS C220 Stem rivals the performance of the revolutionary C260 stem design, but it's quicker and easier to install and remove thanks to a press-fit handlebar clamp interface and forward-facing hardware.
The WCS C22 84D Stem offers 6-degrees of positive or negative rise.
Bolt forces are aligned with the clamp so that the stem body 'embraces' the handlebar, which is less prone to damaging lightweight bars.
This clamp design allows for a lighter faceplate and stem body with no sacrifice in strength or stiffness.
The stem body is forged 2014 aluminum for further weight reduction. Premium quality CrMo steel bolts are used throughout.
4 x M5 coated CrMo steel forward-facing faceplate bolts
2 x M5 coated CrMo steel offset steer tube clamp bolts
5Nm torque max on all hardware
Compatible with all 31.8 bars
Press-fit clamp design installs and removes like a standard stem
Angle: 84/6 degree
Steerer Height: 42mm
Steerer: 1-1/8”
Faceplate Width: 42mm
Blatte finish
Weight : 127g (110mm)
