Product details
Description

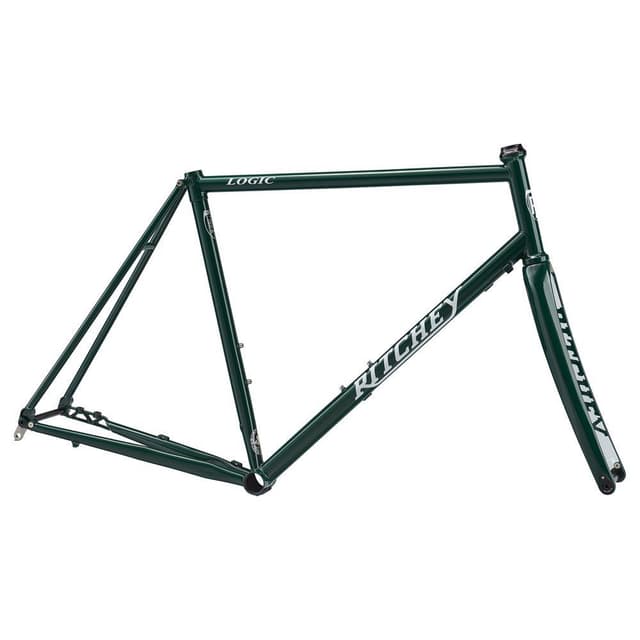

The Ritchey Road Logic Disc Frameset merges over 50 years of frame-building expertise with modern technology to offer a frame that is both comfortable and performance-oriented.
The frame is constructed from heat-treated, triple-butted Ritchey Logic steel tubing, ensuring durability and a smooth ride.
The carbon fork enhances handling precision and reduces weight.
The frame features internal routing for Shimano Di2 groupsets, external cable routing for mechanical groupsets, and flat-mount disc brake compatibility.
This frameset is designed for versatility, capable of handling everything from long road rides to rougher terrains with ease.
Features:
- Frame Material: Heat-treated, triple-butted Ritchey Logic steel tubing
- Fork: Ritchey WCS Carbon Disc Road Fork
- Headtube: Ultra-light forged and machined straight 1-1/8"
- Seat Tube Clamp Size: 28.6mm
- Seat Tube: 27.2mm with integrated seat collar
- Bottom Bracket: 68mm - English threaded
- Axle Spacing: 142mm (12mm alloy thru-axle included)
- Crankset Compatibility: Single 36 to 50t / Double 46/30t to 53/39t
- Cable Routing: Internal for Di2, external for mechanical groupsets
- Brake Compatibility: Flat-mount front and rear (140mm min, 160mm max)
- Tire Clearance: 700 x 30c (frame max 39mm, fork max 40mm)
- Weight: Frame 1,940g (size 55), Fork 420g
