Description

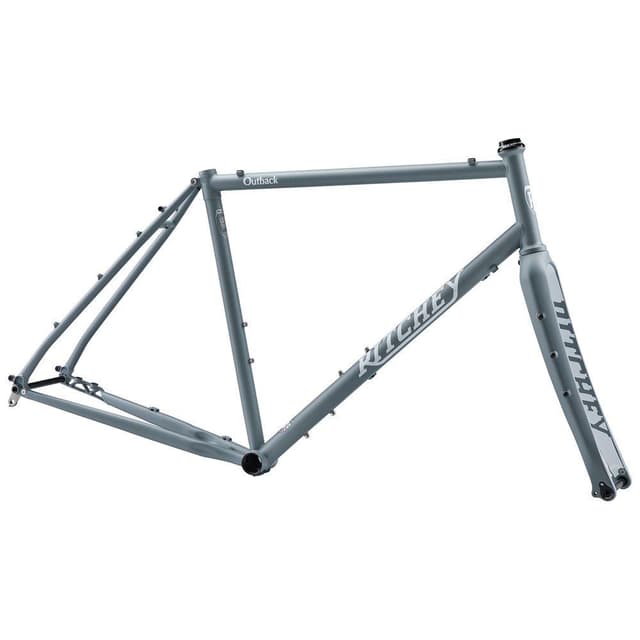

The Ritchey Outback V2 Steel Frame, paired with a carbon fork, is the perfect choice for gravel and adventure cyclists.
Constructed from heat-treated, triple-butted Ritchey Logic steel tubing, this frame provides exceptional strength and a responsive ride.
The carbon fork features mounts for racks and fenders, enhancing its versatility.
With clearance for 700c x 44mm or 650b x 2.0" tires, the Outback V2 is ready for any adventure. It includes a 142mm rear thru-axle, flat-mount disc brakes, and integrated cable routing, making it a reliable and high-performance choice for long-distance rides.
FRAME
Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Mounts for rack and fenders
Straight 1-1/8" Ultra-light forged and machined head tube
WCS headset included (IS42/28.6|IS42/30)
142mm rear spacing (12mm aluminum thru-axle included)
Interchangeable stainless steel derailleur hanger
27.2mm seat tube with integrated clamp
Front derailleur clamp diameter: 28.6mm (max torque: 2.5Nm)
68mm BSA threaded bottom bracket - English threaded
Compatible with 1x or 2x chainrings
Minimum / maximum chainring: 36-46t (single) / all setups from 46/30t to 50/34t (double)
External cable routing
3 bottle cage mounts
FORK
New Ritchey Adventure Fork with mounts for rack and fenders
Straight 1-1/8" steerer integrated for 45 bearing
100mm spacing (12mm aluminum thru-axle included)
Steerer length: 300mm
Axle-to-crown: 393mm
Offset: 50mm
Max load: 3kg each side
TIRES AND WHEELS
Max tire size: 48mm with 700c wheels; 2.0" with 27.5" wheels
Max frame clearance: 58mm
Max fork clearance: 60mm
BRAKES
Flat-mount disc brakes front and rear: 140mm min / 160mm max (adapters sold separately)
Frame flat-mount bracket height: 10mm
Sizes: XS / S / M / L / XL
Frame weight: 2,175g (size L)
Fork weight: 446g
Color: Grey / White
