Ritchey cockpit parts are precise components, so the safe way to buy is to separate the standards. A stem listing may mention 31.8 mm for the handlebar clamp, but that does not confirm the fork steerer or headset. For a Ritchey Switch setup, you also need to check the frame, head tube, fork, headset upper, spacers and any cable-routing adapter.
Start with the steerer and head tube

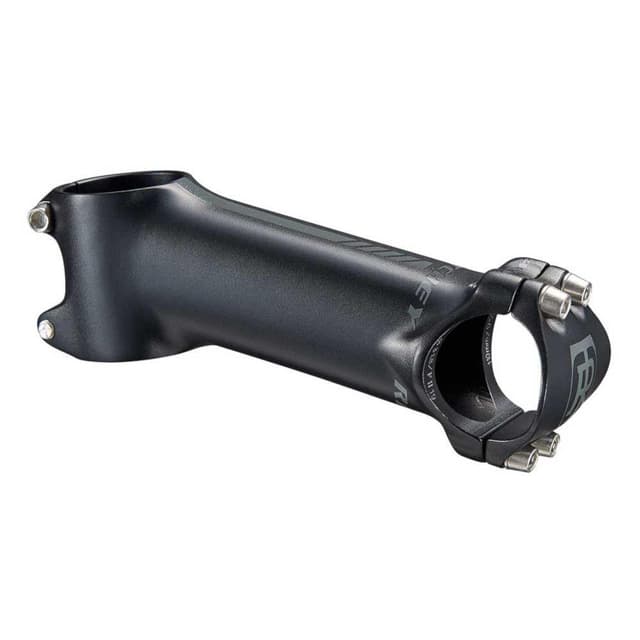

Many standard road and gravel stems fit a 1 1/8 inch steerer. Some Ritchey 4-Axis stems in the catalogue are specifically for a 1 1/4 inch steerer, which is a different fit. A Switch cockpit is another case again: Ritchey's Switch family is designed around compatible frames and tapered 1 1/8 to 1.5 inch fork systems, with cable, wire or hose routing through the cockpit path. Do not buy by brand name alone.
What the Switch parts do
The Ritchey RL1 Switch stem can route up to three cables or hoses when used with the matching Switch headset and spacers. The Switch headset upper then guides those lines into the compatible frame. 1Bike lists both ZS56/28.6 and IS52/28.6 Switch upper options, so the frame's headset standard decides which route is even possible.
Adapters are not universal top caps
The Ritchey WCS Switch adapter for ENVE IN-Route is for a specific cable-routing transition. Its product evidence also references compatibility families such as FSA ACR, Token A-Box/C-Box, ENVE IN-Route and Acros ICR. Treat that as a routing-system compatibility check, not as proof that every frame, bar, headset and stem combination will work together.
1 1/8 and 1 1/4 stems
If you are replacing a normal stem, measure the steerer or read the old part. A 1 1/8 stem and a 1 1/4 Ritchey 4-Axis stem can both use a 31.8 mm handlebar clamp, but they do not fit the same steerer. Also check steerer height, spacer stack, stem angle, length and brake-hose movement before cutting or routing anything permanently.
Headset and crown-race checks
For headset service, record whether the bearing is press-fit, drop-in or semi-integrated, then note the SHIS-style size such as ZS56/28.6 or IS52/28.6. Crown races are just as specific: a 1 1/8 press-fit crown race is not a generic fix for every fork and lower headset.
Before you order
Photograph the current cockpit, measure the steerer, read the headset markings if present, and confirm the frame manufacturer's routing limits. If the bike has hydraulic brakes or internal routing, plan the job as a workshop task: a cheap-looking cockpit swap can become a brake bleed, hose replacement or full headset rebuild.
