Product details
Description

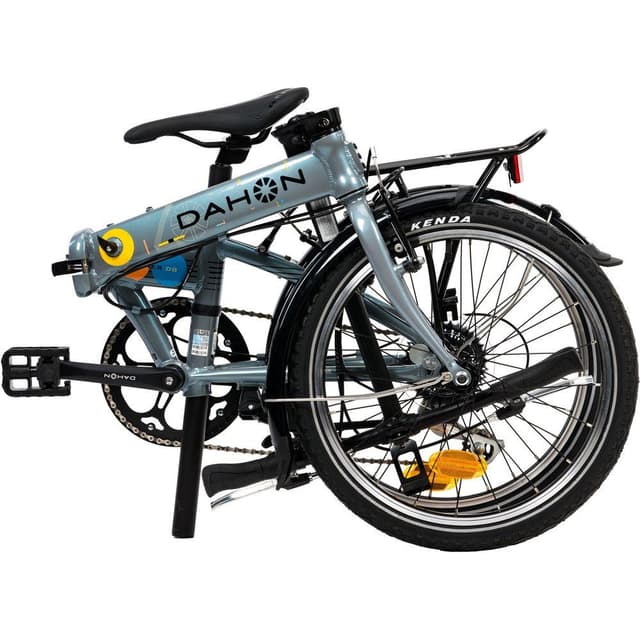

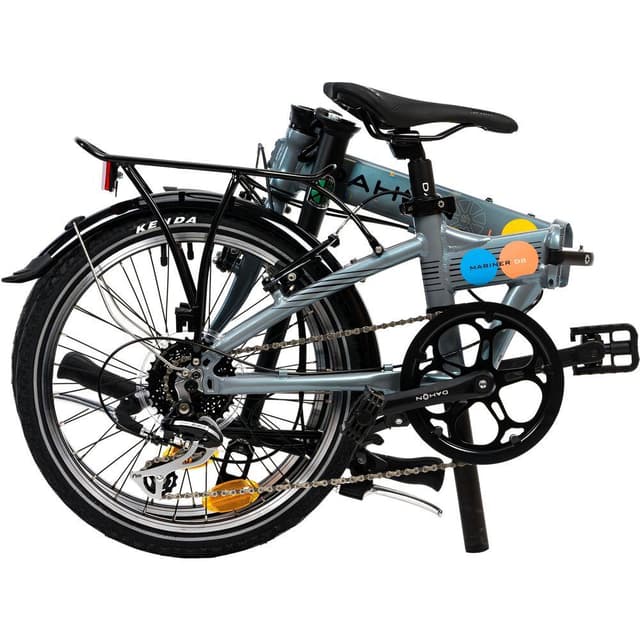

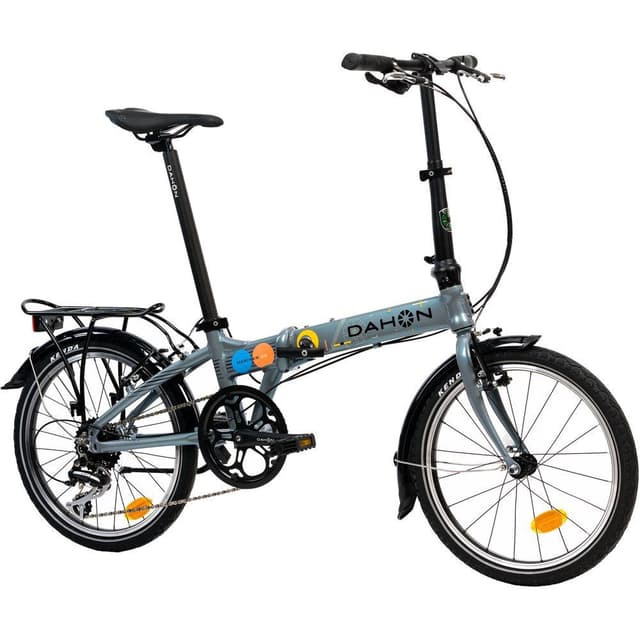

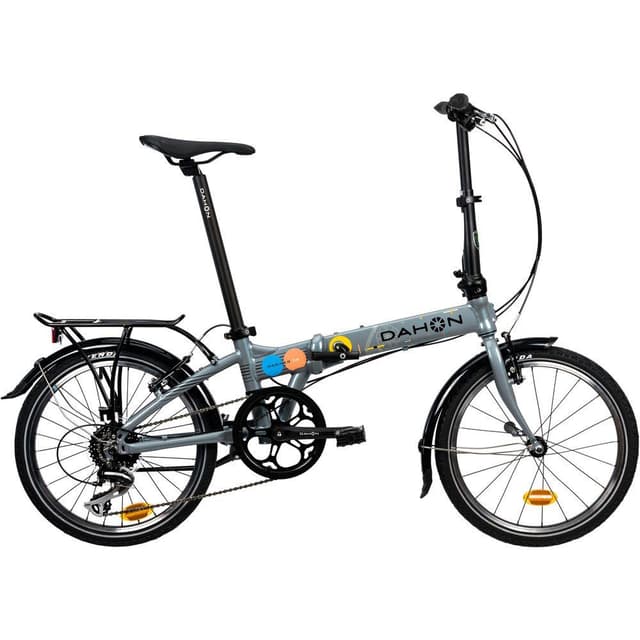

The DAHON Mariner D8 Anniversary Edition marks 40 years of innovation with its stylish, dazzling gray finish and retro decals. It features a 20" wheel size and weighs only 12.38 kg, making it easily portable with a folded size of 65x28x80cm. The bike's lightweight Dalloy aluminum Sonus tubes and lattice-forged hinges offer both durability and flexibility.
The high-tensile steel fork ensures stability and maneuverability. An adjustable DAHON forged aluminum stem with Fusion Technology caters to various rider heights (145-185cm), supporting a maximum weight of 105 kg.
Its drivetrain boasts a 52-tooth crankset with a chain guard, sealed bearing bottom bracket, KMC Z8.3 chain, Sunrace 11-32 tooth 8-speed cassette, and a custom Dahon 8-speed rear derailleur. Foldable DAHON pedals with a PC body and cage complete the setup.
The wheels feature lightweight 20" aluminum rims, 14g stainless steel spokes, and DAHON Custom 20" x 1.5" tires. The bike is equipped with aluminum 110 mm V-Brakes for reliable stopping power.
Additional features include a DAHON Custom 74mm compact aluminum 20-hole front hub, a 28-hole aluminum rear hub, DAHON Custom 8-Speed Trigger Shifters, a 6061 aluminum handlebar (580 mm wide), DAHON Ergo Comfort grips, a Fusion Zero Stack cartridge bearing headset, composite/aluminum 3-finger brake levers, a comfortable DAHON Ergo Comfort saddle, a custom 6061 aluminum seatpost (33.9 mm x 580 mm), and a lightweight aluminum kickstand. The bike is also equipped with a full aluminum rack and fenders.
| Feature | Specification |
|---|---|
| Wheel Size | 20 inches |
| Weight | 12.38 kg |
| Folded Size | 65x28x80cm |
| Frame | Dalloy Aluminum Sonus Tubes, lattice-forged hinges |
| Fork | Hi-Ten steel, stable and maneuverable |
| Handlebar Stem | Forged DAHON aluminum, adjustable, Fusion Technology |
| Drivetrain - Crankset | 52 teeth, with chain guard |
| Drivetrain - Bottom Bracket | Sealed bearings |
| Drivetrain - Chain | KMC Z8.3 |
| Drivetrain - Cassette | Sunrace 11-32 teeth, 8-speed |
| Drivetrain - Rear Derailleur | Dahon Custom 8-speed |
| Drivetrain - Pedals | Foldable DAHON, PC body and cage |
| Wheels - Rims | 20" lightweight aluminum |
| Wheels - Spokes | 14g stainless steel |
| Wheels - Tires | DAHON Custom 20" x 1.5" |
| Brakes | Aluminum 110 mm V-Brakes |
| Rider Height Range | 145-185cm |
| Maximum Rider Weight | 105 kg |
| Additional Features - Front Hub | DAHON Custom 74mm Compact Aluminum, 20 holes |
| Additional Features - Rear Hub | Aluminum, 28 holes |
| Additional Features - Shifters | DAHON Custom 8-Speed Trigger Shifter |
| Additional Features - Handlebar | Aluminum 6061, width 580 mm |
| Additional Features - Grips | DAHON Ergo Comfort |
| Additional Features - Headset | Fusion, Zero Stack with cartridge bearings |
| Additional Features - Brake Levers | DAHON 3-finger, composite/aluminum |
| Additional Features - Saddle | DAHON Ergo Comfort |
| Additional Features - Seatpost | DAHON Custom Aluminum 6061, 33.9 mm x 580 mm |
| Additional Features - Kickstand | Lightweight aluminum |
| Additional Features - Rack and Fenders | Aluminum |
