Product details
Description

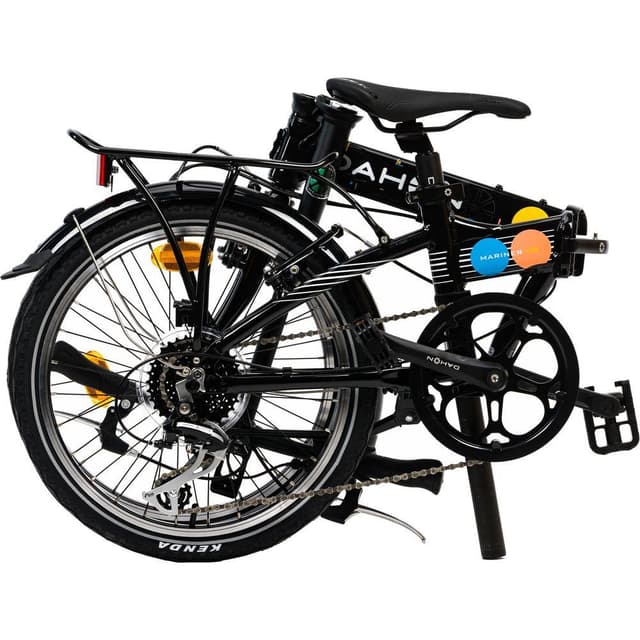

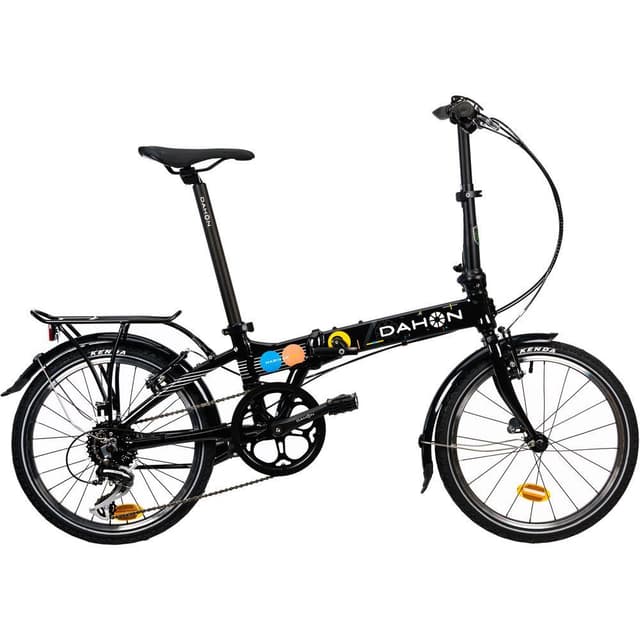

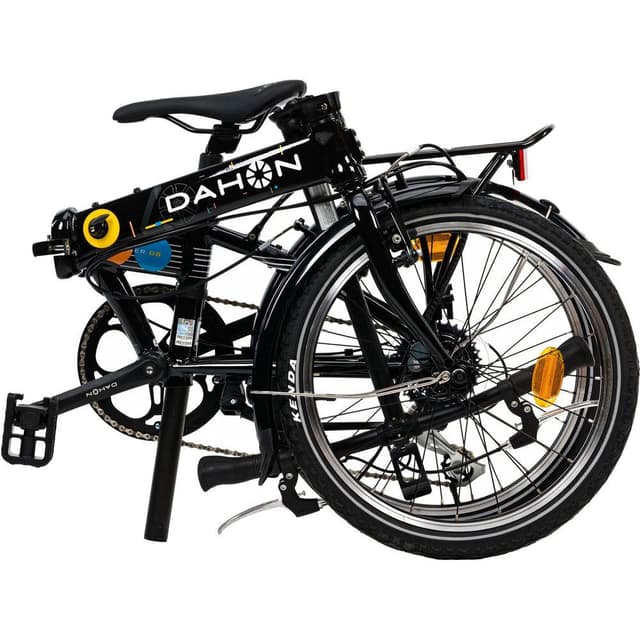

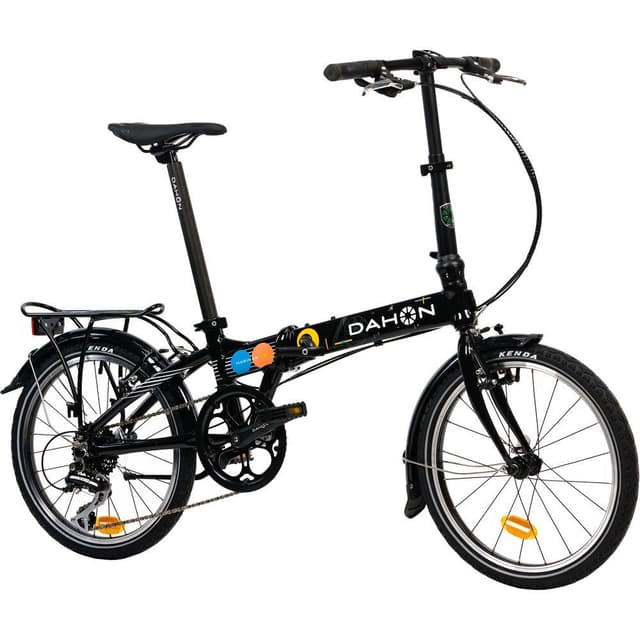

The DAHON Mariner D8 Anniversary Edition in Obsidian marks 40 years of cycling innovation. A tribute to DAHON's legacy, this folding bike is as stylish as it is functional. Weighing just 12.38 kg and with a folded size of 65x28x80cm, it's designed for urban ease and versatility. The bike's lightweight Dalloy aluminum Sonus tubes and lattice-forged hinges offer unrivaled durability and flexibility.
The Hi-Ten steel fork provides stable and responsive handling. Its adjustable DAHON forged aluminum stem with Fusion Technology caters to riders of various heights (145-185cm), supporting up to 105 kg.
The drivetrain includes a 52-tooth crankset with a chain guard, a sealed bearing bottom bracket, a KMC Z8.3 chain, and a Sunrace 11-32 tooth 8-speed cassette, complemented by a Dahon Custom 8-speed rear derailleur. Foldable DAHON pedals with a PC body and cage add to its convenience.
Riding on 20" lightweight aluminum rims, 14g stainless steel spokes, and DAHON Custom 20" x 1.5" tires, it ensures a smooth ride. Equipped with 110 mm aluminum V-Brakes, it guarantees powerful braking.
| Feature | Specification |
|---|---|
| Wheel Size | 20 inches |
| Weight | 12.38 kg |
| Folded Size | 65x28x80cm |
| Frame | Lightweight Dalloy Aluminum Sonus Tubes, Lattice-Forged Hinges |
| Fork | Hi-Ten Steel, Stable and Maneuverable |
| Handlebar Stem | Forged DAHON Aluminum, Adjustable with Fusion Technology |
| Drivetrain - Crankset | 52 teeth, with Chain Guard |
| Drivetrain - Bottom Bracket | Sealed Bearings |
| Drivetrain - Chain | KMC Z8.3 |
| Drivetrain - Cassette | Sunrace 11-32 teeth, 8-speed |
| Drivetrain - Rear Derailleur | Dahon Custom 8-Speed |
| Drivetrain - Pedals | Foldable DAHON, PC Body and Cage |
| Wheels - Rims | 20" Lightweight Aluminum |
| Wheels - Spokes | 14g Stainless Steel |
| Wheels - Tires | DAHON Custom 20" x 1.5" |
| Brakes | Aluminum 110 mm V-Brakes |
| Rider Height Range | 145-185cm |
| Maximum Rider Weight | 105 kg |
| Additional Features - Front Hub | DAHON Custom 74 mm Compact Aluminum, 20 holes |
| Additional Features - Rear Hub | Aluminum, 28 holes |
| Additional Features - Shifters | DAHON Custom 8-Speed Trigger Shifter |
| Additional Features - Handlebar | Aluminum 6061, Width 580 mm |
| Additional Features - Grips | DAHON Ergo Comfort |
| Additional Features - Headset | Fusion, Zero Stack, Cartridge Bearings |
| Additional Features - Brake Lever | DAHON 3 Finger, Composite/Aluminum |
| Additional Features - Saddle | DAHON Ergo Comfort |
| Additional Features - Seatpost | DAHON Custom Aluminum 6061, 33.9 mm x 580 mm |
| Additional Features - Kickstand | Lightweight Aluminum |
| Additional Features - Rack/Fenders | Full Aluminum |
