Product details
Description

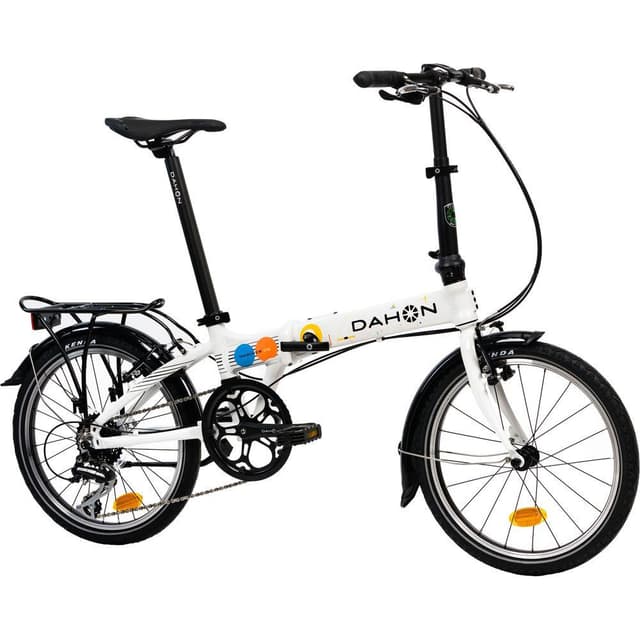

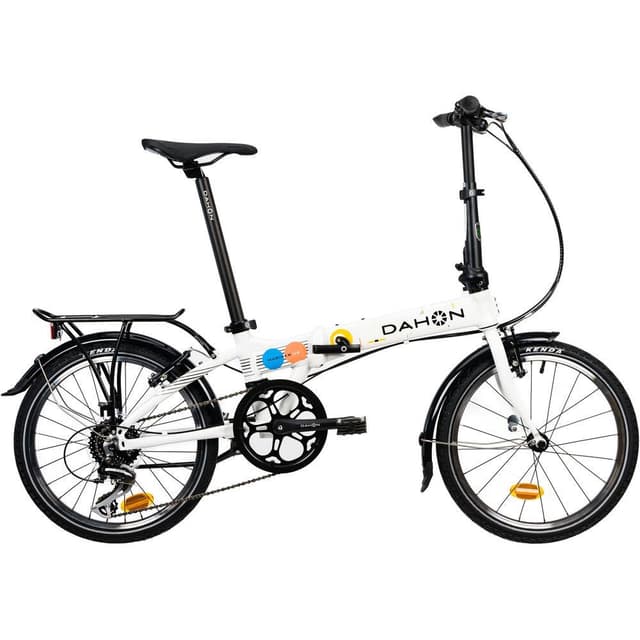

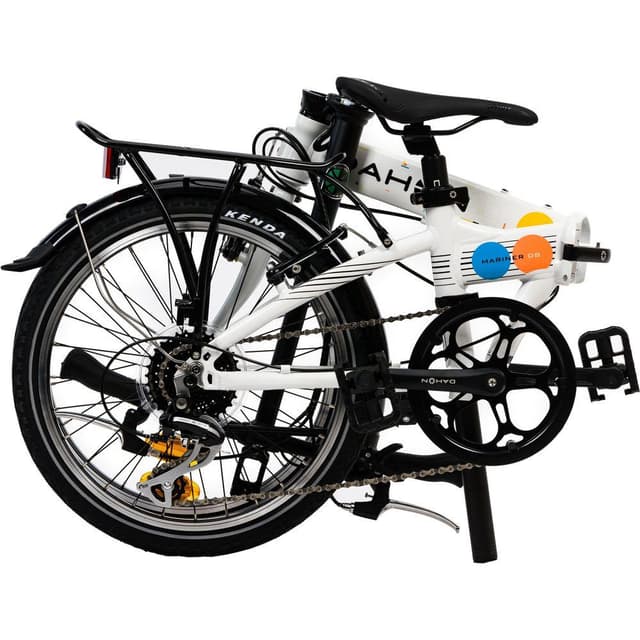

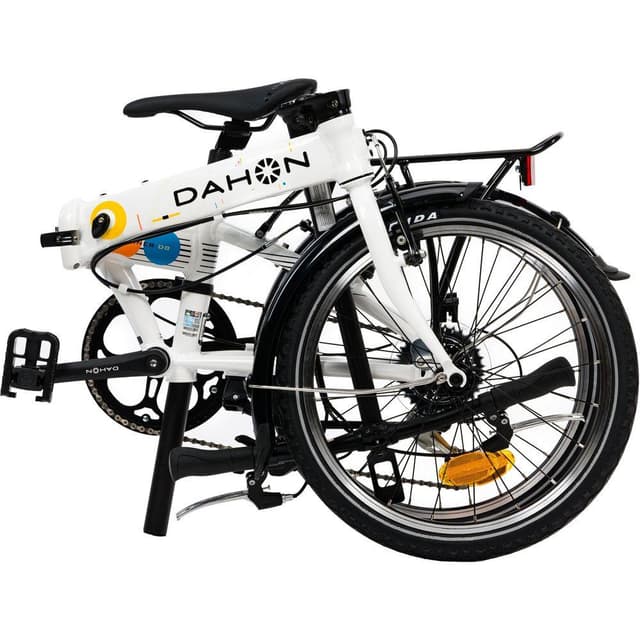

The DAHON Mariner D8 Anniversary Edition in Frost White commemorates 40 years of DAHON's cycling excellence. This special edition brings together retro charm and modern functionality. With a 20" wheel size and a weight of just 12.38 kg, it boasts a compact folded size of 65x28x80cm for easy transport and storage. The bike features lightweight Dalloy aluminum Sonus tubes and lattice-forged hinges for durability and flexibility.
It is equipped with a stable and maneuverable Hi-Ten steel fork and an adjustable DAHON forged aluminum stem with Fusion Technology, suitable for riders between 145-185cm, supporting up to 105 kg.
The drivetrain includes a 52-tooth crankset with a chain guard, a sealed bearing bottom bracket, a KMC Z8.3 chain, a Sunrace 11-32 tooth 8-speed cassette, and a Dahon Custom 8-speed rear derailleur. The foldable DAHON pedals with a PC body and cage ensure convenience and reliability.
The bike's wheels feature 20" lightweight aluminum rims, 14g stainless steel spokes, and DAHON Custom 20" x 1.5" tires. It's outfitted with aluminum 110 mm V-Brakes for effective stopping power.
Additional features include a DAHON Custom 74mm compact aluminum 20-hole front hub, a 28-hole aluminum rear hub, DAHON Custom 8-Speed Trigger Shifters, a 6061 aluminum handlebar (580 mm wide), DAHON Ergo Comfort grips, a Fusion Zero Stack cartridge bearing headset, composite/aluminum 3-finger brake levers, a DAHON Ergo Comfort saddle, a custom 6061 aluminum seatpost (33.9 mm x 580 mm), a lightweight aluminum kickstand, and a full aluminum rack and fenders.
| Feature | Specification |
|---|---|
| Wheel Size | 20 inches |
| Weight | 12.38 kg |
| Folded Size | 65x28x80cm |
| Frame | Lightweight Dalloy Aluminum Sonus Tubes, lattice-forged hinges |
| Fork | Hi-Ten steel, stable and maneuverable |
| Handlebar Stem | Forged DAHON aluminum, adjustable with Fusion Technology |
| Drivetrain - Crankset | 52 teeth, with chain guard |
| Drivetrain - Bottom Bracket | Sealed bearings |
| Drivetrain - Chain | KMC Z8.3 |
| Drivetrain - Cassette | Sunrace 11-32 teeth, 8-speed |
| Drivetrain - Rear Derailleur | Dahon Custom 8-speed |
| Drivetrain - Pedals | Foldable DAHON, PC body and cage |
| Wheels - Rims | 20" lightweight aluminum |
| Wheels - Spokes | 14g stainless steel |
| Wheels - Tires | DAHON Custom 20" x 1.5 |
| Brakes | Aluminum 110 mm V-Brakes |
| Rider Height Range | 145-185cm |
| Maximum Rider Weight | 105 kg |
| Additional Features - Front Hub | DAHON Custom 74mm Compact Aluminum, 20 holes |
| Additional Features - Rear Hub | Aluminum, 28 holes |
| Additional Features - Shifters | DAHON Custom 8-Speed Trigger Shifter |
| Additional Features - Handlebar | 6061 aluminum, width 580 mm |
| Additional Features - Grips | DAHON Ergo Comfort |
| Additional Features - Headset | Fusion, Zero Stack with cartridge bearings |
| Additional Features - Brake Lever | DAHON 3-finger, composite/aluminum |
| Additional Features - Saddle | DAHON Ergo Comfort |
| Additional Features - Seatpost | DAHON Custom Aluminum 6061, 33.9 mm x 580 mm |
| Additional Features - Kickstand | Lightweight aluminum |
| Additional Features - Rack/Fenders | Full aluminum |
