Product details
Description

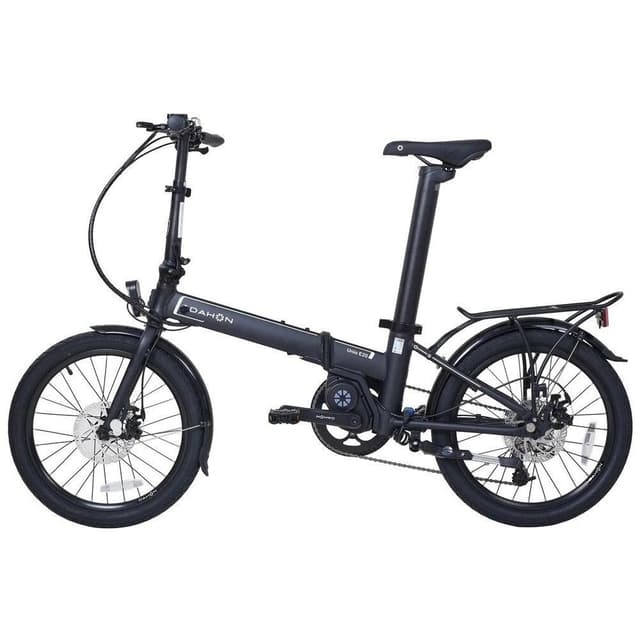

Electrify your rides with the DAHON UNIO E20 Electric Folding Bike in Jet Black. This high-performance bike features a powerful 200W/36V mid-drive motor paired with a 36V/8.7AH battery, cleverly integrated into the seatpost for a sleek look. Its lightweight design, weighing just 18.70 kg, doesn't compromise on power or appearance.
With a folded size of 71x42x81cm, it's designed for urban environments and easy storage. The frame is made from lightweight Dalloy Aluminum Sonus tubes with lattice-forged hinges and an integrated Dalloy Aluminum fork with patented Fusion technology.
The drivetrain includes a 56-tooth crankset with a chain guard, a KMC Z9 chain, and a Sunrace 11-32 tooth 9-speed cassette. It offers a maximum torque of 60 Nm, ensuring efficient power delivery. The bike is equipped with 20" lightweight aluminum double-wall rims for disc brakes, 14g stainless steel spokes, and DAHON Custom 20" x 2.0" tires. Dahon mechanical disc brakes provide reliable stopping power.
| Feature | Specification |
|---|---|
| Wheel Size | 20 inches |
| Weight | 18.70 kg |
| Folded Size | 71x42x81cm |
| Frame | Lightweight Dalloy Aluminum Sonus Tubes, Lattice-Forged Hinges |
| Fork | Dalloy Aluminum, Integrated Patented Fusion Technology |
| Handlebar Stem | Forged DAHON Aluminum, Adjustable with Fusion Technology |
| Drivetrain - Crankset | 56 teeth, with Chain Guard |
| Drivetrain - Bottom Bracket | Mid-drive Motor, 36V/200W, Max Torque: 60 Nm |
| Drivetrain - Chain | KMC Z9 |
| Drivetrain - Cassette | Sunrace 11-32 teeth, 9-speed |
| Drivetrain - Rear Derailleur | Custom 9-Speed |
| Drivetrain - Pedals | Foldable DAHON, PC Body and Cage |
| Wheels - Rims | 20" Lightweight Aluminum, Double-Wall for Disc |
| Wheels - Spokes | 14g Stainless Steel |
| Wheels - Tires | DAHON Custom 20" x 2.0" |
| Brakes | Dahon Mechanical Disc Brakes |
| Rider Height Range | 145-185cm |
| Maximum Rider Weight | 105 kg |
| Additional Features - Front Hub | DAHON Custom 100mm, 22-Hole Disc |
| Additional Features - Rear Hub | DAHON Custom 135mm, 28-Hole, 9-Speed Disc |
| Additional Features - Shifters | 9-Speed Trigger Shifter |
| Additional Features - Handlebar | Aluminum 6061 Double Butted, Width 580 mm |
| Additional Features - Grips | DAHON Ergo Comfort |
| Additional Features - Brake Lever | DAHON 2.5 Finger Aluminum |
| Additional Features - Saddle | DAHON Ergo Comfort |
| Additional Features - Seatpost | DAHON Custom Aluminum 6061, 57 mm x 560 mm |
| Additional Features - Kickstand | Lightweight Aluminum |
| Additional Features - Rack/Fenders | Full Aluminum |
